Electrostatic gas discharges are prevented in a controlled manner through the use of Eltex active ground monitoring systems.
![](https://www.eltex.de/wp-content/uploads/AdobeStock_251329449-2-2.jpg)
Grounding of large containers during filling or emptying
![](https://www.eltex.de/wp-content/uploads/32-060-01_90840138.jpeg)
Conductive drums into which a solvent is pumped or removed must be grounded!

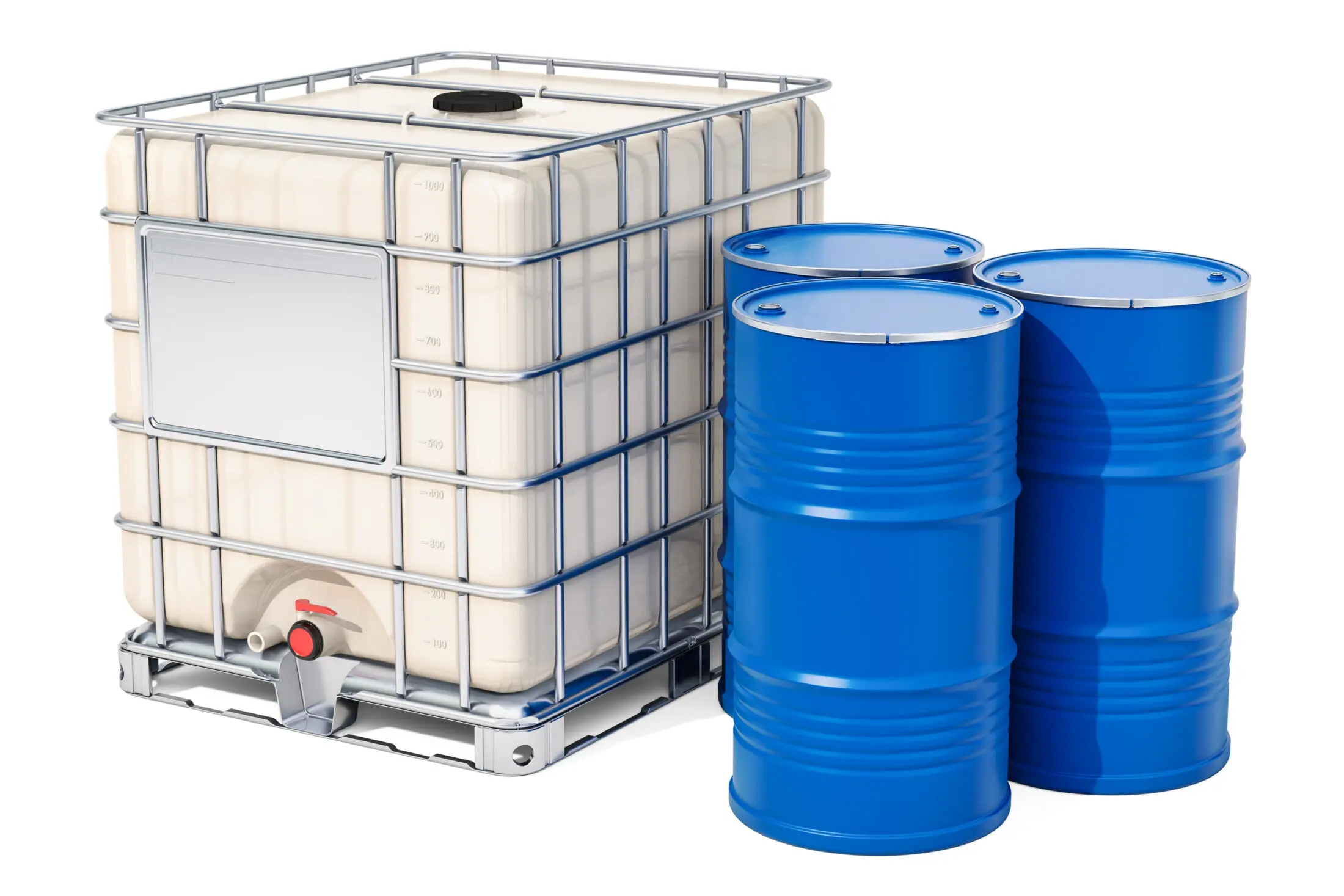

Electrically conductive drums are filled or emptied with a solvent-containing liquid.
![](https://www.eltex.de/wp-content/uploads/AdobeStock_204969414.jpeg)
Can electrostatic discharge occur as a result of filling the liquid into the container?
In the companies, the solvents or solvent-based ink are delivered in large conductive containers or barrels. When the solvent content is pumped, mixed or stirred, a good ground connection must always be made to prevent a spark discharge and fire. Since the containers are mobile, it can happen that an operator forgets to connect a grounding clamp and starts the process without grounding.
Our solution
Which Eltex components are used?
![](https://www.eltex.de/wp-content/uploads/TERRA-C_S-6-4.png)

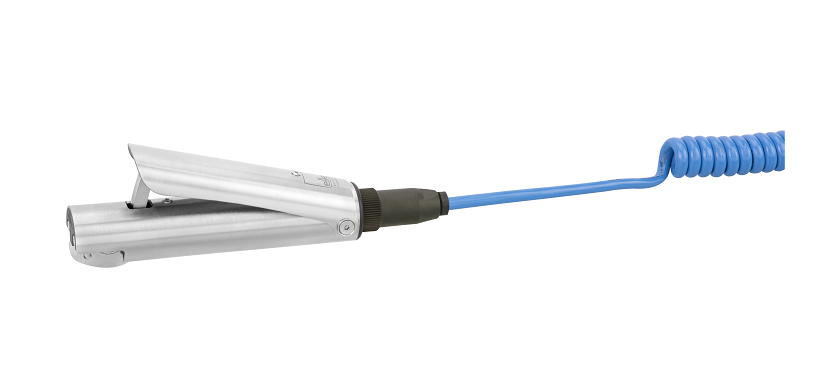

Active grounding clamps
The active Eltex grounding clamps from the TERRACLAMP and the 70 series are used together with the TERRALIGHT and the Terra-Control TUE30 ground monitoring system to establish and monitor grounding connections. These devices are used when decanting or filling potentially explosive substances. Existing electrostatic changes are discharged effectively in a controlled manner. The active grounding clamps from the TERRA-C/S, TERRA-C/B, 70AK and 70HK series feature extremely hard and sharp collet jaws. The jaws also feature a continuously high clamping force, ensuring a secure connection to the equipotential bonding at all times. The standard version of the grounding clamps includes a plug-in-connector for an easy connection to the included grounding cable, spiral cable and rewinding cable reels.
![](https://www.eltex.de/wp-content/uploads/terrabox_tcb030-7.jpg)
TCB030
Terrabox TCB030 is designed for direct installation in explosion hazard areas and for connecting a clamp. Two clamps are connected when used for BIG BAG grounding. The dual-color indicator lamp signals the correct grounding state. The integrated contacts allow an enable circuit to be implemented.
